LaBr3(Ce)
Introduction:
LaBr3(Ce) crystal is one of the new generation of inorganic scintillation gamma-ray detectors. Lanthanum Bromide scintillation material has been the reference for excellent energy resolution combined
with fast emission and good linearity. Its comprehensive performance beyond the traditional high output with platinum nai scintillation crystals, is one of the best so far found flashing performance
crystal, it can be widely used in nuclear medicine imaging, geological exploration, oil well logging, space physics and nuclear radiation detection field. At present LaBr3 large sizes with Dia3"x4" and Dia4"x5"are available.
LaBr3:Ce is a promising scintillator for natural gamma-ray spectroscopy measurement.
LaBr3 introduces an enhanced set of capabilities to a range of gamma spectroscopy radioisotope detection and identification systems used in the homeland security market. Important requirements for
the scintillation crystals used in these applications include high light output, high stopping efficiency, fast response, low cost, good linearity, and minimal afterglow. LaBr3 has attractive scintillation
properties such as very high light output (~60,000 photons/MeV), and fast principle decay constant (30 ns). Based on these properties, LaBr3:Ce is a promising scintillator for γ-ray spectroscopy.
Properties:
| Density(g/cm3) | 5.29 |
| Light yield(Photons/MeV) | 60000 |
| Energy resolution(662KeV) | <3.5% |
| Decay time(ns) | 16 |
| Peak emission (nm) | 380 |
| Hygroscopic | Yes |
LaBr3:Ce detector type | Gamma energy spectrometer | Gamma ray logs |
Diameter of Crystal(mm) | 15～75 | 15～75 |
Cylindrical high(mm) | 10～100 | 10～100 |
Peak Emission (nm) | 380 | 380 |
Light Yield (Photons/MeV) | 50000~63000 | 50000~63000 |
Energy Resolution Cs-137 | 2.6～3.2% | 3～4.5% |
Decay time | ≤20 | ≤20 |
Operating Temperature(°C) | -10~+50 | -20~+175 |
Special shaped LaBr3 crystal list:

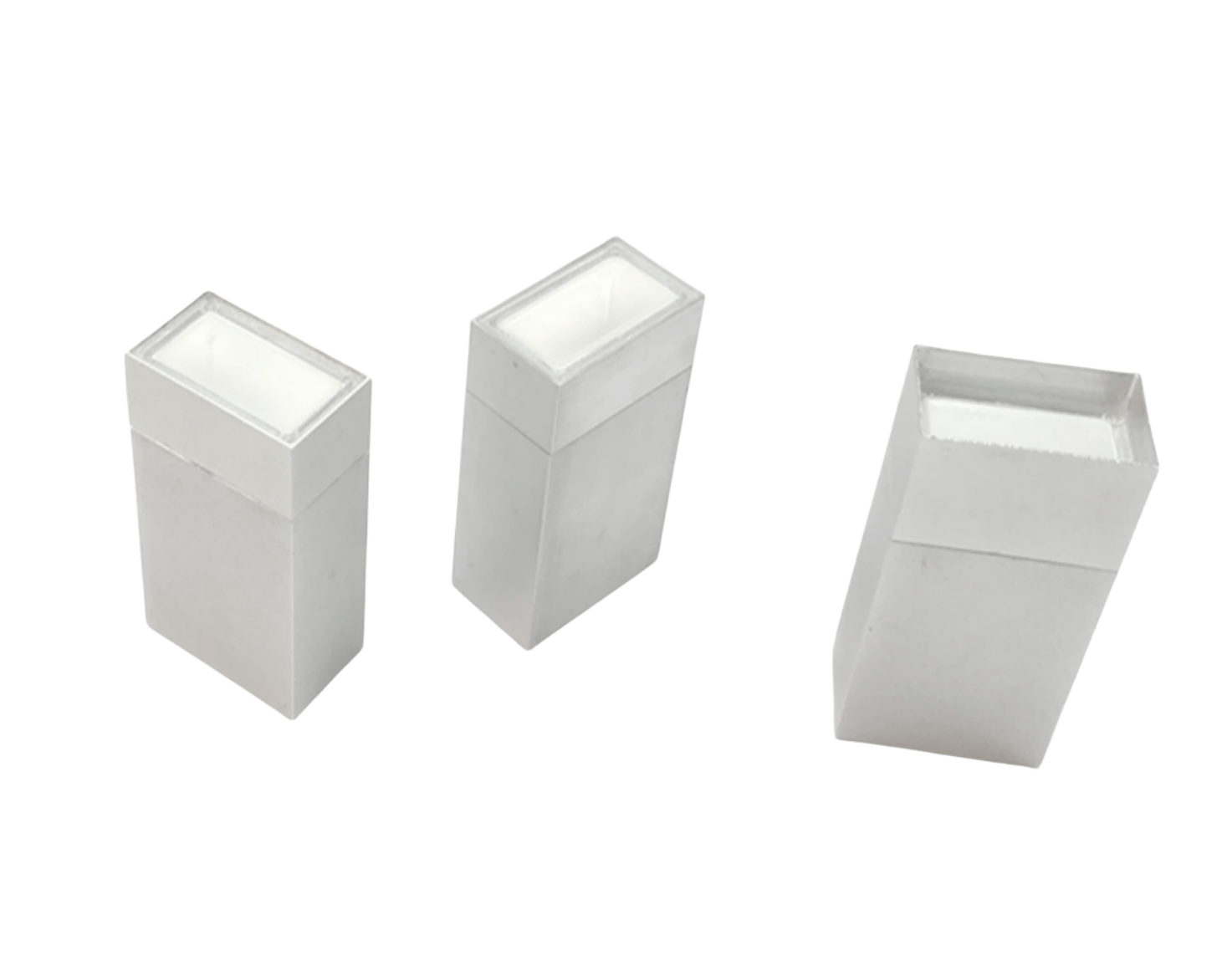

| Crystal size | 12.7x25.4x50.8mm |
| Overall dimension | 18x30x55mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |

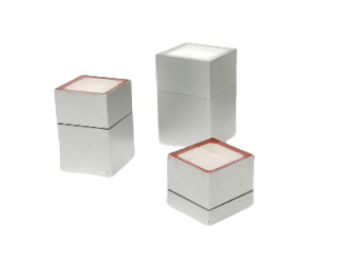

Crystal size | 12x12x12mm |
| Overall dimension | 17x17x17mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |
| Crystal size | 12x12x24mm |
| Overall dimension | 17x17x30mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |

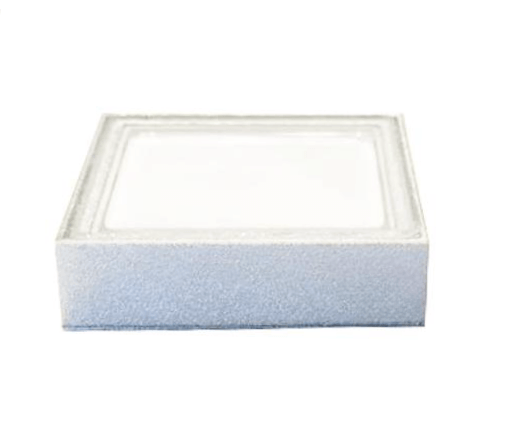

| Crystal size | 20x20x3mm |
| Overall dimension | 25x25x8mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -25℃~50℃ |
| Working temperature | 25℃~50℃ |

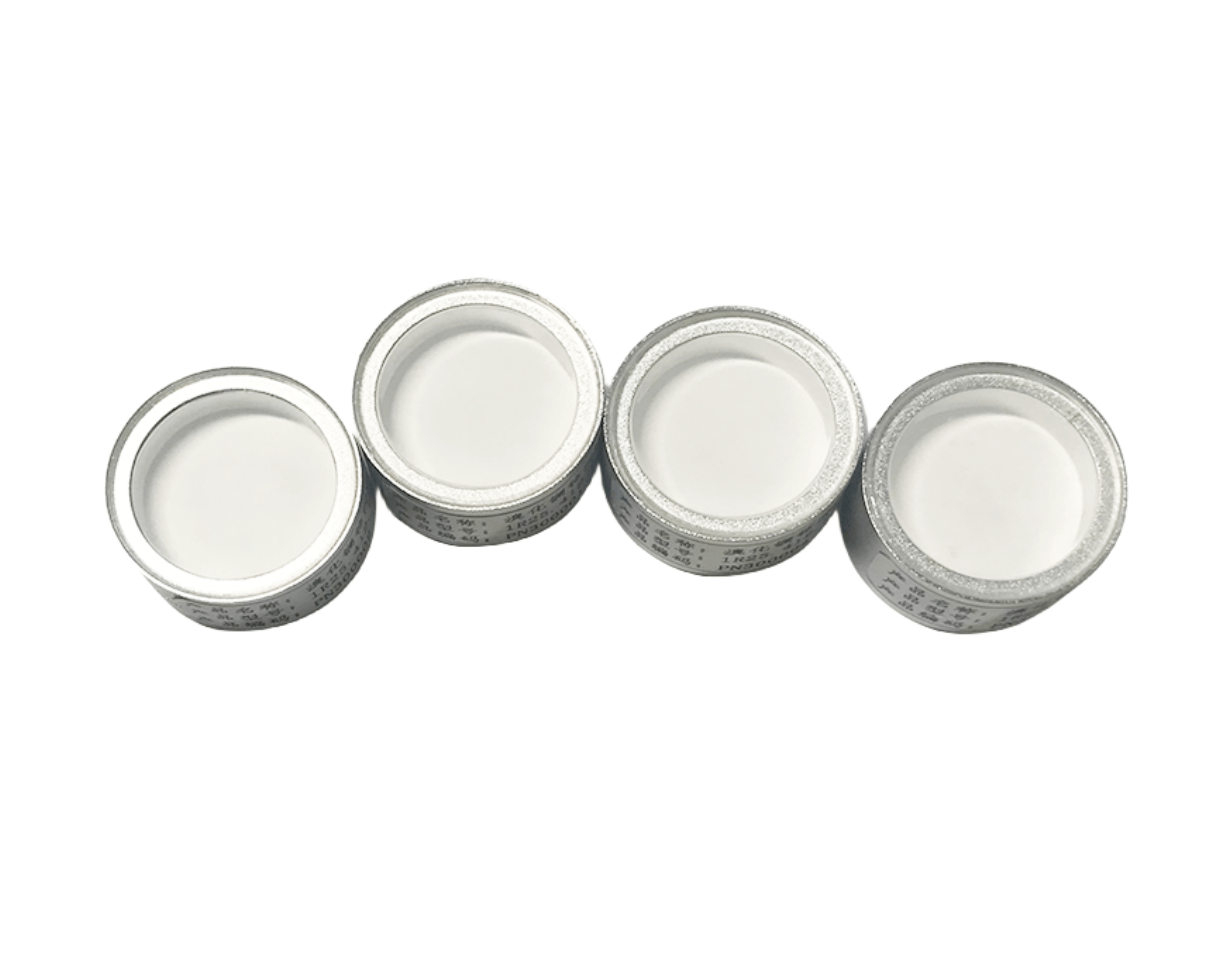

| Crystal size | Dia25.4x12.7mm |
| Overall dimension | Dia30x18mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |

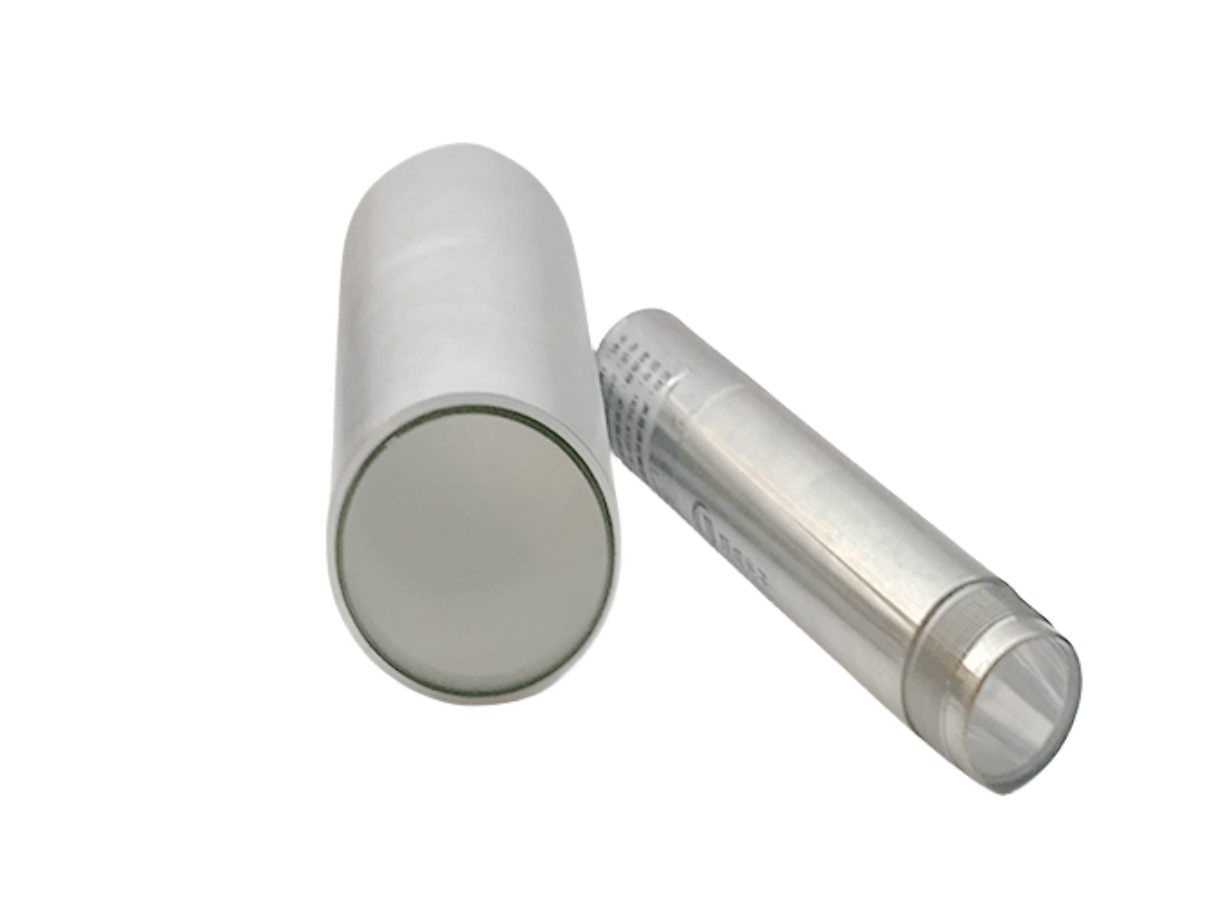

| Crystal size | Dia38x50mm |
| Overall dimension | Dia43x55mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |

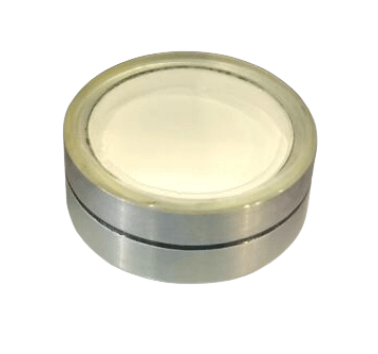

| Crystal size | Dia56x20mm |
| Overall dimension | Dia60x25mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |
| Crystal size | Dia50x76mm |
| Overall dimension | Dia55x81mm |
| Energy resolution | <3.5%@662keV |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |

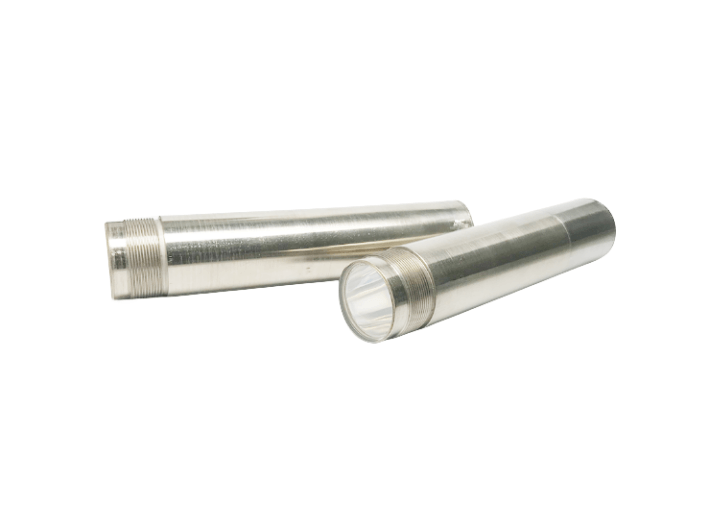

High temperature LaBr3 crystal list:
| Crystal size | Dia25.4x100mm |
| Overall dimension | Dia31.75x125mm |
| Energy resolution | <7%@662keV(25℃) |
| Storage temperature | -20℃~175℃ |
| Working temperature | 25℃~175℃ |
Crystal size | Dia25.4x122mm |
| Overall dimension | Dia31.75x150mm |
| Energy resolution | <7%@662keV(25℃) |
| Storage temperature | -20℃~175℃ |
| Working temperature | 25℃~175℃ |
Crystal size | Dia25.4x150mm |
| Overall dimension | Dia31.75x175mm |
| Energy resolution | <7%@662keV(25℃) |
| Storage temperature | -20℃~175℃ |
| Working temperature | 25℃~175℃ |
| Crystal size | Dia50x100mm |
| Overall dimension | Dia57x125mm |
| Energy resolution | <4%@662keV(25℃) |
| Storage temperature | -20℃~175℃ |
| Working temperature | 25℃~175℃ |
