Introduction:

Plastic scintillator detector for neutron and gamma discrimination consists of a plastic scintillator array and a photoelectric device (SiPM or PMT). A typical example consists of an EJ-276 plastic scintillator array and a SenSL C-series silicon photodiode. As shown in the figure, the neutron gamma discrimination detector is composed of a crystal coupled to a SiPM.

Features:

The neutron gamma discrimination detector has good energy linearity. The single pixel size of this design can be customized as needed. It supports replacing the scintillator with any scintillator with neutron gamma discrimination capability (such as liquid scintillator (as BC501A, EJ301, EJ309), plastic scintillator (as EJ299, EJ276) and stilbene scintillator), as well as selecting user-specified optoelectronic devices. In addition, this product can form an array detector with multiple pixels according to user needs to achieve position measurement.

Main performance:

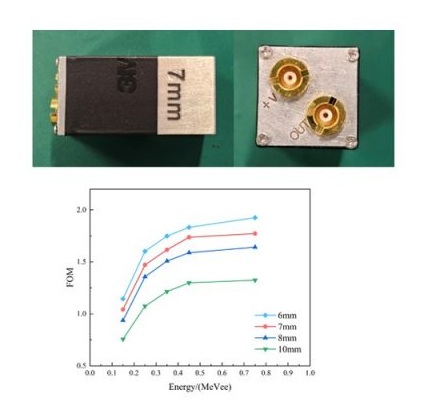

Neutron gamma discrimination factor: FOM>1@150keV, 8~10mm cubic scintillator

Main applications:

Passive fast neutron multiplicity measurement Neutron imaging

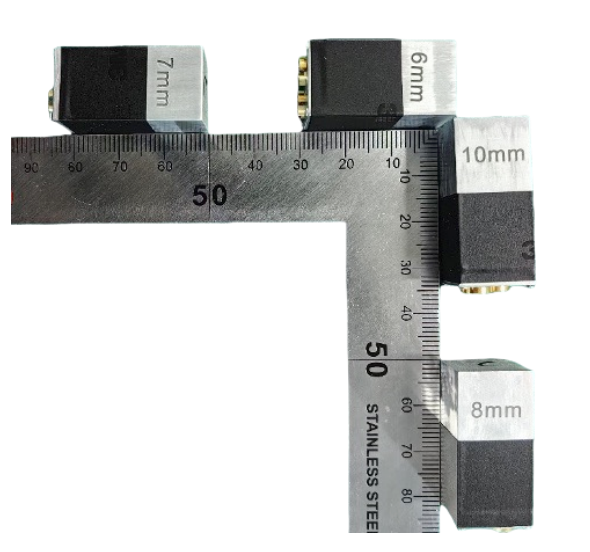

Product case:
