H2111-02 photometric detector
    Publish time 2024-12-23 13:41

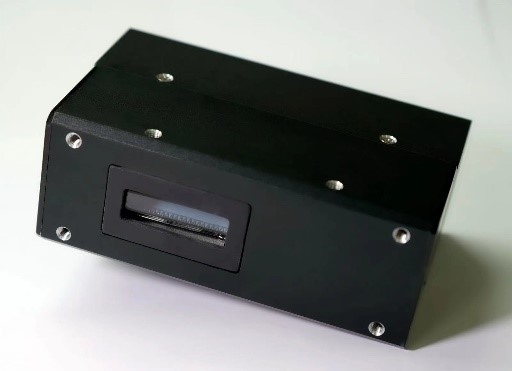

H2111-02 photometric detector

The H2111-02 photometric detector developed by our company is mainly used in high energy physics, vitro diagnosis, precision measurement and other fields. H2111-02 photometric detector consists of side window photomultiplier tube, high voltage power supply module and amplifier circuit. The product has the advantages of simple and convenient, high reliability and high detection efficiency, and can be controlled by multiple ways (voltage regulation or resistance regulation) gain.


Parameter      Min    Typ    MaxUnit
Input Voltage                  ±11.5~±12.5V
Max Input Current                        100mA
Effective Area                       8x24mm
Spectral range                     160-650
nm
Peak wavelength                        400nm
Control voltage

+5V
Cathode luminous sensitivity                        60μA/lm
Cathode radiant sensitivity                        25
mA/W
Output luminous sensitivity                      4x106V/lm
Output ardiant sensitivity                       1.7
V/nW
IV conversion ratio                      0.05
V/μA
Maximum linear output voltage                        5
V
Offset voltage                      ±2mV
Ripple noise                        4mV
Frequency bandwidth                      500kHz
Weight                      225
g
Working temperature                   +5~+40℃
Humidity (Max)                    90%RH--
Storage  temperature                   -20~+50℃
Humidity (Max)                    93%RH--



































Applications: Biotechnology, Medical Application, Precise measurement
