H3013 β detector
    Publish time 2024-12-23 13:44

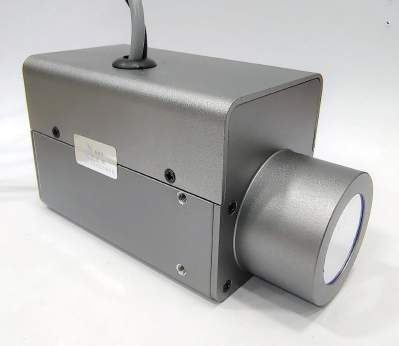

H3013 β detector

H3013 β detector can measure low energy β ray, because of its excellent anti-interference ability, can be widely used in environmental detection, precision measurement, scientific research and other fields.  The H3013 β detector is mainly composed of end window photomultiplier, high voltage power supply module, signal forming circuit, scintillator and so on.

The product has the advantages of simplicity, high reliability and high detection efficiency.  Before leaving the factory, it has been tested in all aspects, connected to the power supply, and the output end can be used with the counting unit.


Parameter      Min     Typ    MaxUnit
Input Voltage                  ±11.5~±12.5V
Max Input Current            ≤60(+12V); ≤10(-12V)mA
Effective Area                        Φ23mm
Output pulse logic                        TTL
--
Output pulse amplitude                       5±0.2V
Output pulse width                     500±100
Background counting rate
3S-1
Observed counting rate                   545k~625kS-1
1 hour instability
0.20.4%
Working temperature                   +5~+40℃
Humidity (Max)                    90%RH--
Storage  temperature                   -20~+50℃
Humidity (Max)                    93%RH--

























Applications: Pollution monitoring, Medical Application, Precise measurement
